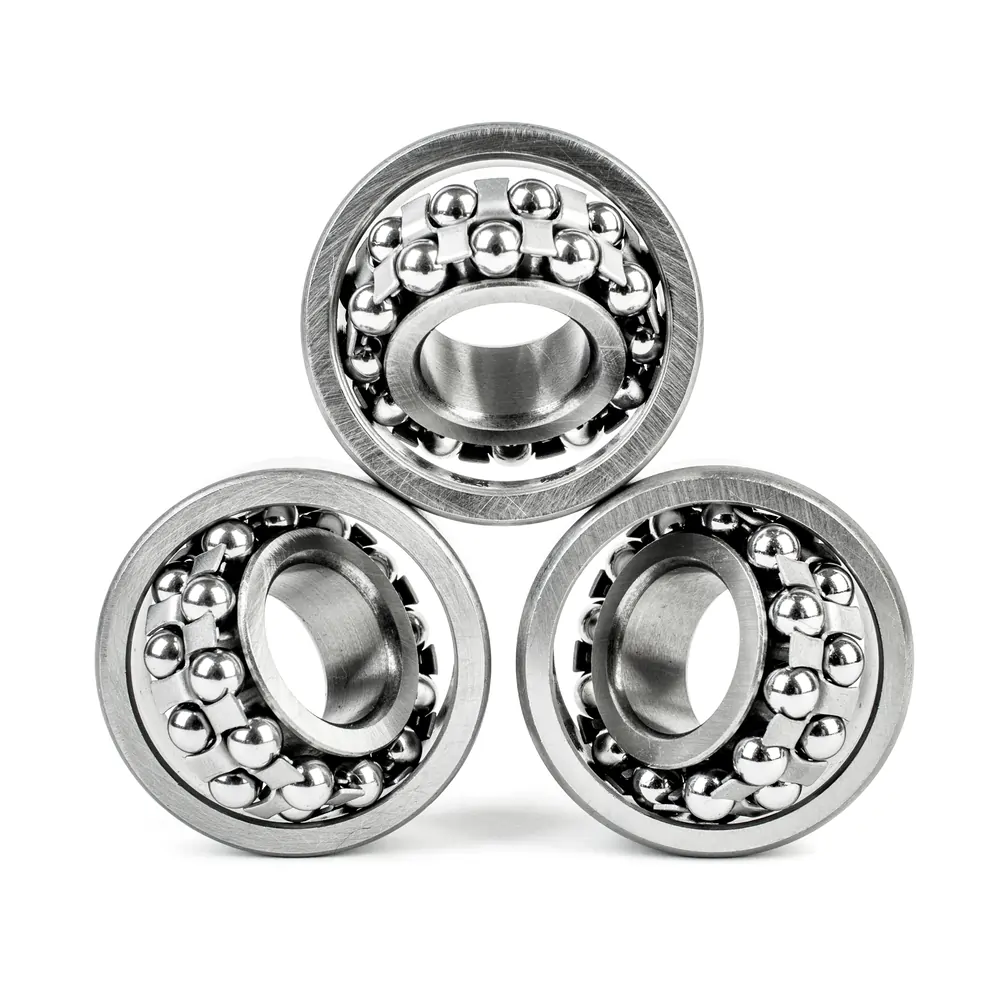

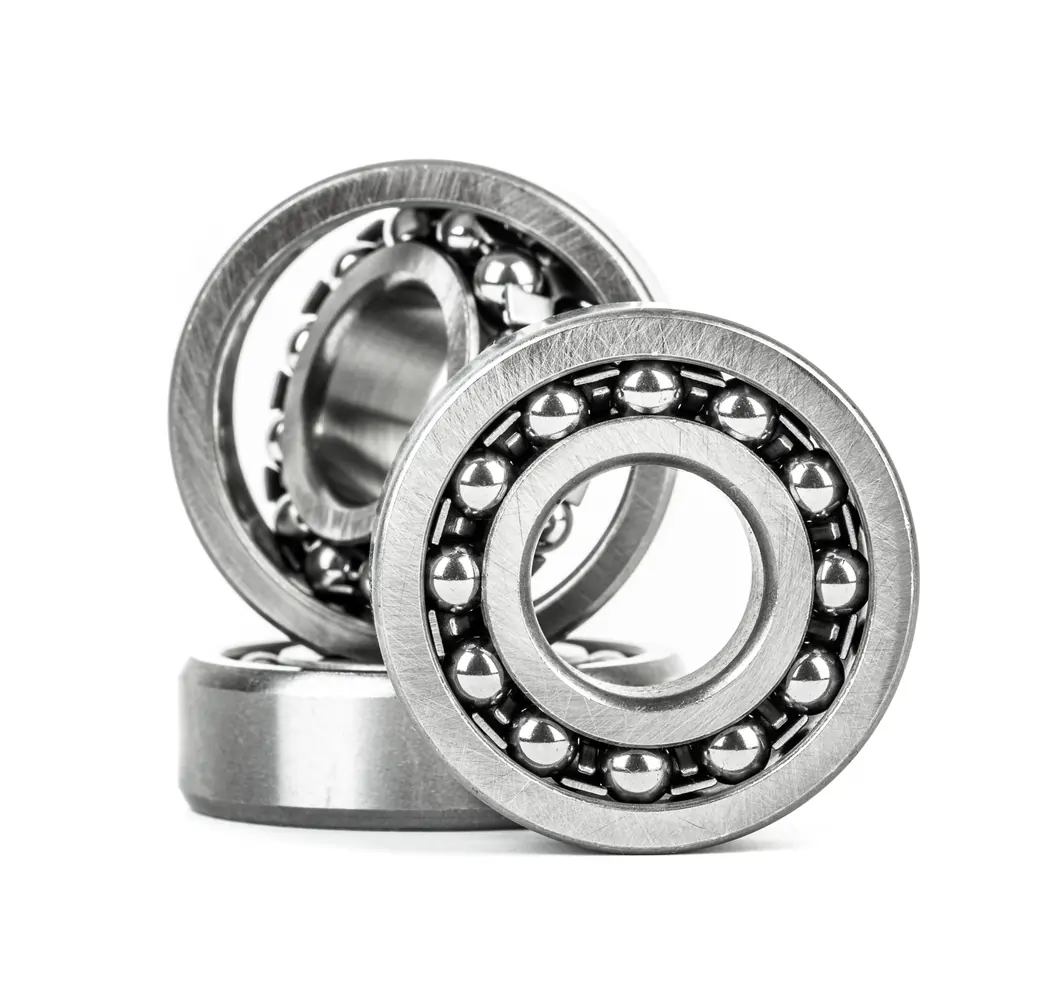

Self Aligning Ball Bearings
This page offers a comprehensive overview of our standard self-aligning ball bearings series. We list 14 models, but we can customize self-aligning ball bearings to meet your specific requirements, such as special dimensions, closures, load capacities, speeds, and more.
Below, you will find specification charts for all our standard models. For more information, please click on the respective model number.
Bearings Spec Chart
外形尺寸 (mm) | 基本额定负荷 (N) | 允许转速 (rpm) | 参考 |
|||||
产品型号 # | 内孔尺寸 | 外径尺寸 | 高度尺寸 | 动负荷（Cr) | 静负荷（Cor) | 脂润滑（非接触） | 油润滑（非接触） | 参考 |
| 1200 | 10 | 30 | 9 | 7490 | 1520 | 17000 | 20000 | Info |
| 2200 | 10 | 30 | 14 | 9620 | 1930 | 17000 | 20000 | Info |
| 1300 | 10 | 35 | 11 | 7360 | 1660 | 15000 | 18000 | Info |
| 2300 | 10 | 35 | 17 | 10570 | 2400 | 15000 | 18000 | Info |
| 1201 | 12 | 32 | 10 | 5720 | 1310 | 15000 | 18000 | Info |
| 2201 | 12 | 32 | 14 | 9480 | 2120 | 15000 | 18000 | Info |
| 1301 | 12 | 37 | 12 | 9720 | 2250 | 14000 | 17000 | Info |
| 2301 | 12 | 37 | 17 | 11180 | 2620 | 14000 | 17000 | Info |
| 1202 | 15 | 35 | 11 | 7750 | 1790 | 14000 | 17000 | Info |
| 2202 | 15 | 35 | 14 | 9720 | 2250 | 14000 | 17000 | Info |
| 1302 | 15 | 42 | 13 | 9850 | 2330 | 12000 | 15000 | Info |
| 2302 | 15 | 42 | 17 | 11200 | 2730 | 12000 | 15000 | Info |
| 1203 | 17 | 40 | 12 | 8120 | 2070 | 13000 | 16000 | Info |
| 2203 | 17 | 40 | 16 | 8120 | 2070 | 13000 | 16000 | Info |
